Handheld TFT blood flow detector vascular doppler monitor

Handheld TFT blood flow detector vascular doppler monitor

Features of handheld vascular doppler:

● VD-100D TFT LCD displays the wave of the instant blood flow average velocity and strength. It prints the monitoring blood flow curve simultaneously;

● Detect the blood stream status of arterialenous by 8MHz probe;

● Detect the blood flow average velocity, detect the result of fingers/toes and part of body's vein anatomies o peration;

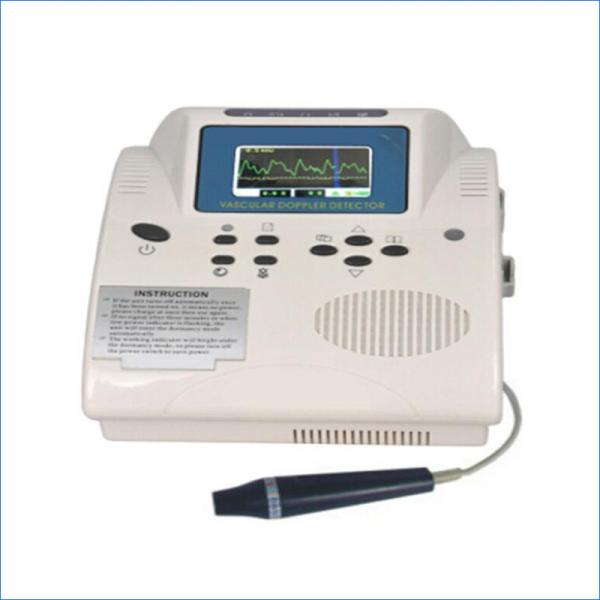

● VD-100D portable bidirectional vascular Doppler with large color LCD screen;

● Built-in ARM microprocessor & real-time displays blood flow velocity waveform;

● Can store 50 detected waveforms;

● High-speed USB/RS -232 port, can be connected directly to computer to analyze, store, and print the waveform data;



Specification of doppler vascular portable:

● Water-proof degree:Common device, without function of water-proof.

Safety degree of flammable gas: Unsuitable to use under the flammable gas.

● Working mode: continuous work

● Frequency range:Main unit :200±80~5000±1000HZ Probe :350±80~2500±500HZ

● External output:loudspeaker, single channel with earphone jack(optional)

● Emissive waveform: sine wave

● Ultrasonic frequency:5.0MHz±10% ,8.0MHz ±10%

● Ultrasonic frequency average intensity: < 50mW/cm2

● Velocity measure range:0~100 cm /s.

● Test error:≤20%(relative error)

● Overall sensitivity:> 100dB

● Frequency mode display range:0.2 KHz~7.0 KHz

● LCD Display:240*320dots TFT, LCD cursor indicates blood stream speed, double display mode for the spectrum and velocity.

● Power supply: AC/DC. Input AC power: 110-240V 50Hz/60Hz Output DC power: 24V/1.5A ;

● Power consume:<20W;built-in Ni-MH rechargeable battery:14.4V/1600 mAh.

● Fuse: for adapter: 3.15A, for rechargeable battery:1.75A,for charging circuit inside: 1.5A.

● Power indication: blue LED indication

● Charge indication:the charge indicator is yellow when charging and become green after full charge.

● Alarm indication: the indicator light is red when the lack of battery.

● Lack of paper indication: When the recorder is lack of paper, the indication light is red.

● Environment condition:

● Temperature:+5℃ ~ +40℃ ,

● Humidity:<80%,

● Atmospheric pressure:86kPa ~ 106kPa.

● Transport and storage environment:

● Temperature:-10℃ ~ +55℃ ,

● Humidity:<80%,

● Atmospheric pressure:86kPa ~ 106kPa

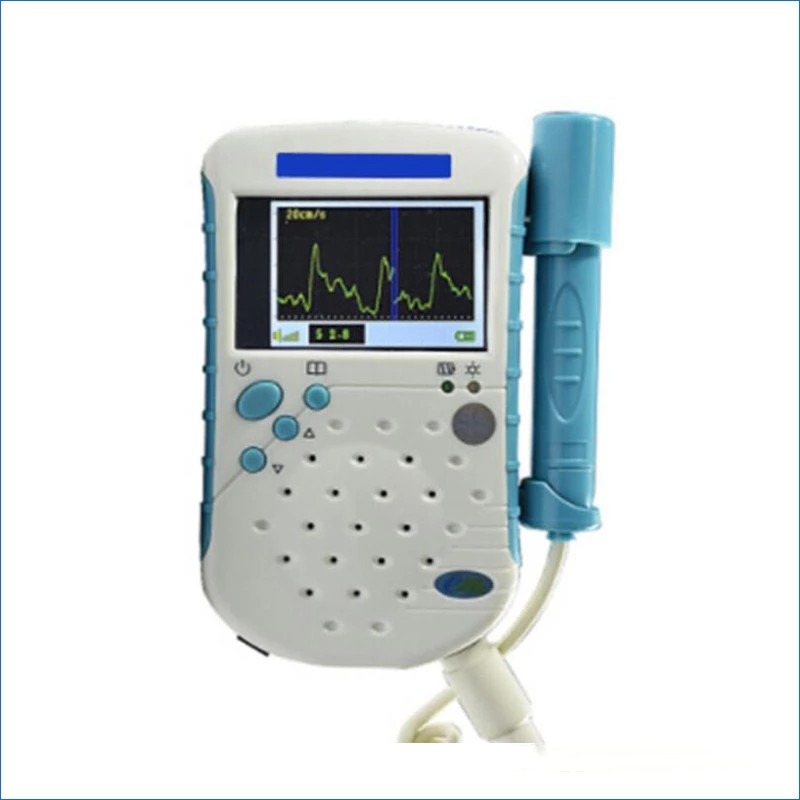

handheld vascular Doppler / Portable Handheld Pocket Vascular Doppler
